Description
Main ParametersBM1804-6PDrive Type4×4 Four-wheel driveEngine Brand / Emission StandardYuchai National Stage IVEngine ModelYCA07P210-T401Max. Torque (N·m) / Speed (rpm)705/1400-1700No. of Cylinders / Displacement (L)6/6.871Fuel Tank Capacity (L)266=216+50Rated Power / Corresponding Speed (kW/rpm)132.
Product Parameters

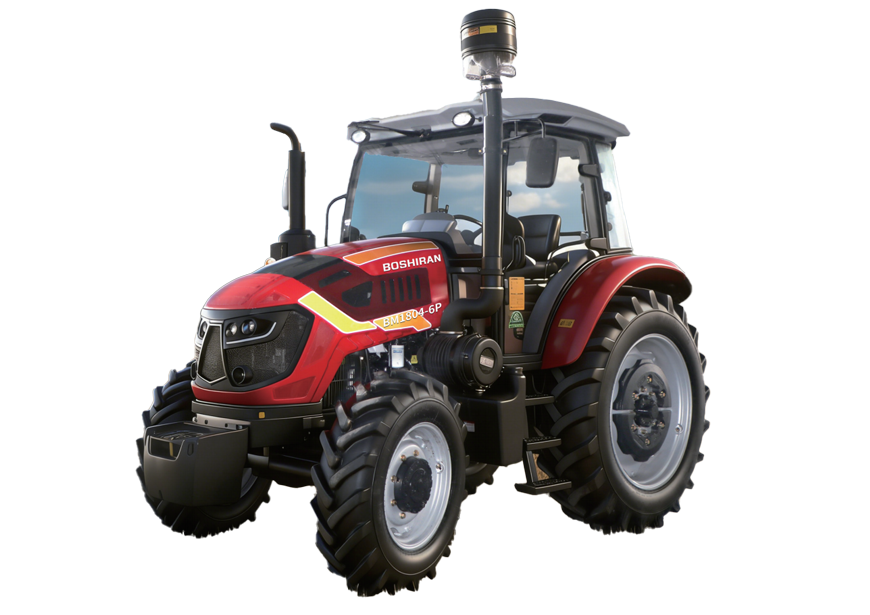

| Main Parameters | BM1804-6P |
| Drive Type | 4×4 Four-wheel drive |
| Engine Brand / Emission Standard | Yuchai National Stage IV |
| Engine Model | YCA07P210-T401 |
| Max. Torque (N·m) / Speed (rpm) | 705/1400-1700 |
| No. of Cylinders / Displacement (L) | 6/6.871 |
| Fuel Tank Capacity (L) | 266=216+50 |
| Rated Power / Corresponding Speed (kW/rpm) | 132.4/2300 |
| Fuel Consumption at Rated Power (g/kW·h) | ≤225 |
| Aspiration Method | Turbocharged and intercooled |
| Air Cleaner | Dry type air filter |
| Torque Reserve | 21% |
| Transmission System | |
| Clutch | Single plate - dry - 14 |
| No. of Gears | 16F+8R |
| Shift Method | Dog clutch shift, synchronizer shift, creeper gear |
| Maximum Speed | 34 km/h |
| Gear Layout | Side-mounted |
| Hydraulic System | |
| Hydraulic Output Flow | 73.6 L/min |
| Hydraulic Output Valve Sets | 3 sets |
| Working Device | |
| Three-point Linkage Category | Category 2 / Category 3 |
| PTO Speed | 540/760, 540/1000, 760/850 |
| Lifting Force (at 610mm) | >35 kN |
| Tillage Depth Adjustment | Position control / Float control |
| Overall Parameters | |
| Overall Dimensions (L×W×H) (mm) | 4880×2450×3260 (Top of air cleaner) |
| Minimum Operating Weight (kg) | 5990 |
| Wheelbase (mm) | 2633 |
| Min. Turning Radius (m) | 5.7±0.3 |
| Rated Traction Force (kN) | 35.5 |
| Min. Ground Clearance (mm) | 400 (Rear drawbar pin) |
| Air-conditioned Cab | Optional |
| Heated Cab | Optional |
| Front / Rear Wheel Tread (mm) | "1674, 1784, 1792, 1912, 1954, 2074, 2082, 2202 / 1620-2170 Common: 1954/1926" |
| Tire Specification | "Standard tire: 14.9-26/18.4-38 Paddy tire: 12.4-28/18.4-34 Front paddy, rear center tread tire: 12.4-26/18.4-34 Center tread tire: 14.9-26/18.4-38" |
| Braking and Steering | |
| Braking System | Wet disc brake, hydrostatic pedal control |
| Steering Method | Full hydraulic steering |
| 4WD Steering Angle | 45° |
