Description

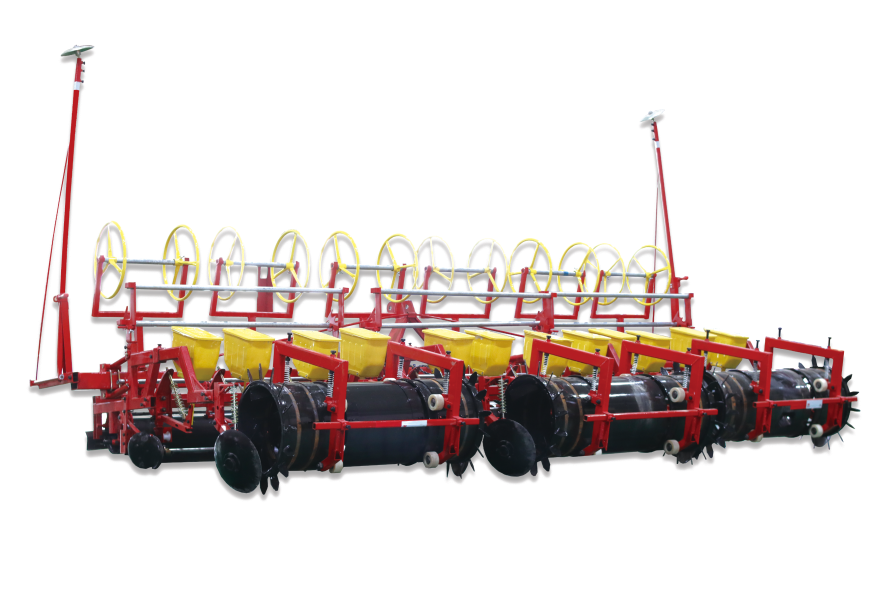

Independently developed and manufactured by Xinjiang Boshan, this planter revolutionizes precision agriculture by integrating four critical processes—soil leveling and compaction, drip tape laying, film mulching with soil covering, and precision seeding through film—into a single-pass operation, achieving unparalleled efficiency and crop establishment accuracy.
Product Advantage
The film-unrolling roller bearing seat employs a patented new design with a conical shape, which can effectively reduce the shifting of the mulching film during the film-laying operation.
The high-quality hole seeder features high seeding accuracy and minimal missed or repeated seeding.
The soil-covering drum is designed reasonably to ensure even soil coverage.
The bulldozing plate can effectively remove debris from the soil surface, creating favorable conditions for seeding.
Product Features
The film-unrolling roller bearing seat employs a patented new design with a conical shape, which can effectively reduce the shifting of the mulching film during the film-laying operation.
The high-quality hole seeder features high seeding accuracy and minimal missed or repeated seeding.
The soil-covering drum is designed reasonably to ensure even soil coverage.
The bulldozing plate can effectively remove debris from the soil surface, creating favorable conditions for seeding.
The entire machine adopts a frame structure, making it stable, durable, and lightweight.
The seed box also uses a newly designed integral seed box with a larger space, capable of storing more seeds. The structural design is reasonable, improving seeding efficiency.
Product Video
Product Parameters
| Serial Number | Item | Unit | Parameters | ||
| 1 | Model Name | / | 2MBJ-2/42MBJ-2/4 Film Mulching Planter | 2MBJ-3/62MBJ-3/6 Film Mulching Planter | 2MBJ-4/82MBJ-4/8 Film Mulching Planter |
| 2 | Complete Machine Part Number | / | 5234.00 | 5326.00 | 5348 |
| 3 | Structural Form (Mounting Method) | / | Three-Point Rear Hitch | Three-Point Rear Hitch | Three-Point Rear Hitch |
| 4 | Matching Power Range | Kw | 22~55 | 25~55 | 40~55 |
| 5 | Overall Dimensions (Length x Width x Height) | mm | 2900X2250X1440 | 2900X3200X1440 | 2900X4200X1550 |
| 6 | Number of rows | 4 | 6 | 8 | |
| 7 | Row spacing | mm | 350~450Single Film 350~450 Adjustable | 350~450Single Film 350~450 Adjustable | 350~450Single Film 350~450 Adjustable |
| 8 | Adaptable Film Width | mm | 750 | 750 | 750 |
| 9 | Type of Seed Meter | / | Seed Spoon/Clip Type | Seed Spoon/Clip Type | Seed Spoon/Clip Type |
| 10 | Number of Seed Meters | 4 | 6 | 8 | |
| 11 | Covering Device Type | / | Roller/Rated Body | Roller/Rated Body | Roller/Rated Body |
| 12 | Number of drip irrigation pipe (tape) frames | 2 | 3 | 4 | |
| 13 | Seed Box Capacity | L | 30 | 45 | 60 |
| 14 | Operating speed range | Km/m | 3.5~4.0 | 3.5~4.0 | 3.5~4.0 |
| 15 | Seeding Transmission Mode | / | Natural Opening | Natural Opening | Natural Opening |
